Most Important Salient Features at a Glance:
- High performance machine with High feeding speed up to 25 m/min gives more production
- Internally Teflon coated hot melt glue pot to allow an easy and quick glue replacement
- Motorized up-down movement of pressure beam for easy thickness setting
- Robust feed chain & conveyor system with heavy duty gearbox for effective pressure on panels
- Low maintenance m/c, easy available cost effective spares, best after sales service support.

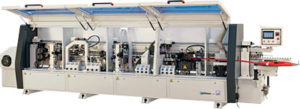

Open View:
Processing edges needs to be as quick, easy and efficient as possible. To achieve this, the OptiEdge model combines the key characteristics of speed, productivity, flexibility and user comfort in a convincing complete Package.
The final finishing results when processing coiled material convince with incredibly high standards that fulfil the ever increasing demands of edge banding complete processing.
Edge processing aggregates and an optimized machine chassis guarantee absolute stability even when running at maximum speed.
With the “Professional” and “Performance” processing packages, the OptiEdge can be perfectly configured for company specific requirements.
Easy accessible, user friendly Smart Touch PLC control panel. The Corner rounding unit is controlled from the control panel, with the option of choosing the shape of panel.
Pre-Milling:
An optimal unit for panel edge pre-milling with two heavy duty high frequency motors supplied with set of diamond cutters as standard supply with machine.
Cleaning Agent:
In order to prevent glue to adhere on panel, cleaning liquid is sprayed to lower & upper surface of the panel.
Auto Lubrication:
Automatic Lubrication system circulates lubrication to the required parts of the machine, ensures efficient operation & increase life of parts.
2 Motor Round Cornering:
Compact and powerful high frequency two motors round cornering unit guarantees perfect finish on edge sliding on two heavy prismatic guide ways with recirculation ball bearings . Trimmer 2R cutter for PVC / ABS gives perfect round cornering on edges of straight, chamfered and post formed panels.
All electronic & pneumatic parts are from well-known international brands for trouble free operation
Air pressure safety tanks are provided to ensure non-dropping of air during process. Two tanks are provided one for general air supply and other for specific round cornering unit.
Technical Details:
| Specifications | Unit | Parameters OptiEdge 6.5 (without pre milling) | Parameters OptiEdge 6.5P (with pre-milling) |
| Work piece thickness range | mm | 10-60 | 10-60 |
| Minimum work piece width | mm | 60 | 60 |
| Minimum work piece length | mm | 100 | 100 |
| Edge banding thickness for PVC & ABS in coil form | mm | 0.4-3.0 | 0.4-3.0 |
| Work piece feeding speed | m/min | 15-20-25 | 15-20-15 |
| Glue pot capacity | kg | 2 | 2 |
| Total power | hp | 12.66 | 18.66 |
